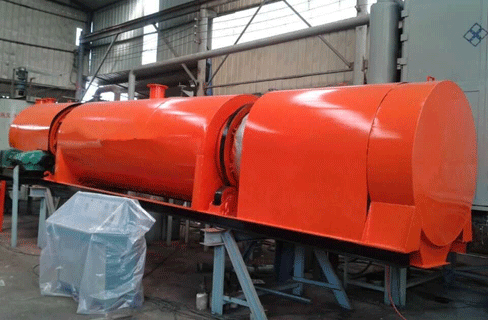

Horizontal continuous carbonization furnace is the ideal device to make the Woodiness material containing carbon(the size of the granulate under 15mm) ,such as wood sawdust, rice husk, peanut shell, straw, bark etc, destructive distillation carbonization without oxygen and have a High carbonization rate in the furnace which under the condition of high temperature.
Horizontal continuous carbonization furnace not only solved the pollution problems the ordinary carbonization furnace smoke on the environmen through recovery , purification and combustion cycle of the combustible gas produced during the carbonization process to produce carbon monoxide, methane, oxygen, etc. But also solved the problem the equipment needed for the energy, sufficient to achieve a self-sufficient, the continuity of the equipment is improved. Makeing full use of agricultural and forestry residues, its turning waste into treasure, alleviate the contradiction of supply and demand of our country forestry resources , and make more contribution to the green environment.
Working principle of Horizontal continuous carbonization furnace
Horizontal continuous carbonization furnace equipped with: biomass gasifier, gas purifier, fan, the mixed gas burner, Carbonization furnace and other equipment.
Horizontal continuous carbonization furnace , make full use of in the process of carbonization of carbon monoxide, methane, hydrogen and other combustible gas, through the flue gas purification system isolated from wood tar, wood acid liquid pure combustible gas, through the self-made air burner to burn fully, high temperature carbonization heating pipeline (temperature control in 600 degrees left and right). There are four layers of carbonization furnace internal pipeline from top to bottom, the first, the two layer is the third layer of pipe preheating drying, low-temperature carbonization pipeline, the fourth layer is the high temperature carbonization pipeline. First, the two layer is provided with an independent exhaust pipe to discharge steam pipeline with the furnace waste heat for drying of material, water the steam from the exhaust. Third, the four layer is provided with a combustible gas recovery pipeline independent, high temperature carbonization of carbonization of pipeline material, the decomposition of carbon monoxide, methane, hydrogen and other combustible gas, through the flue gas recycling pipeline net The burner is heated by the combustion of the pipeline, and the effect of the heating and carbonization of the reciprocating cycle is achieved. The primary carbonization ignition source is supplied by the biomass gasification furnace.
Advantage
1. Easy to operate and maintain, higher safety.
2. High carbonization rate, no smoking, little pollution, high efficiency.
3. Can work continuously, so the output is large.
4. Good carbonization effect, making the final product high quality and good appearance.
5. Innovative design and reliable quality.
6. Unique structure, large valid volume, advanced carbon technic, short cycle, high capacity, long operation life.
7. Small investment, energy-saving, high productivity, good economic benefits, convenient maintenance.
|
Charcoal Machinery-Horizontal Continuous Carbonization Furnace |
Type |
Dimension
(M) |
Capacity
(KG/H) |
Effective Volume
(CBM) |
Power
(KW) |
Voltage
(V) |
Granular Size |
Moisture |
|
XMH-130 |
0.8X8 |
400-500 |
4 |
17.7 |
380 |
Granular Size:
No more than 30mm;
If larger than 30mm
Crush it into pieces,
Moisture content：
No more than 20%
8-10% is better
If more than 30%
Need to dry it |
|
XMH-140 |
0.8X10 |
500-600 |
5 |
17.7 |
|
XMH-150 |
1.0X10 |
600-700 |
7 |
21.1 |
|
XMH-160 |
1.0X12 |
700-800 |
9 |
21.1 |
|
XMH-170 |
1.2X10 |
800-1000 |
11 |
24.6 |
|
XMH-180 |
1.2X12 |
1000-1500 |
13 |
24.6 |
