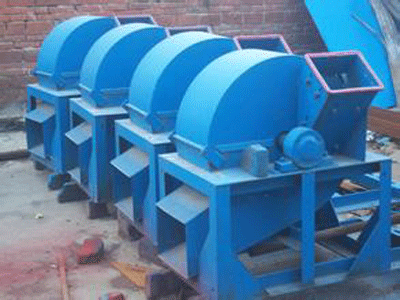

Sawdust crusher can make wood, branch fork, all kinds of wood raw materials into sawdust (powder, granular,)in one time .with less investment, low energy consumption and high productivity, good economic benefit, convenient to use and repair etc. The machine especially suitable for the wood processing in edible fungus culture medium, mainly composed of chip cutting device, crushing device and fan. The wood after cutting into small sawdust particle size, no need to be dried can send into crushing device to be further crushing, after crushing the finished will be send to the site of the aggregate by the fan. The whole equipment only drive by one motor , simple structure, compact layout, price cheap, stable work, less energy consumption, high output, wood products of good quality and low processing cost. Can also be used for scraping bamboo, straw, corn stalks, sorghum stalk fiber stem etc . The machine can also be used for shaving board, produce raw material of sawdust board high-density plate.

The machine can process pine, miscellaneous wood, fir, the original bamboo, bamboo, because the machine structure is compact, cover an area of small, good quality and low power consumption, and is suitable for mobile operation, widely used in small and medium particleboard and fiberboard production enterprise preparation section, also can be used for self-employed for the commodity wood chip production.

型号model	400型	500型	600型	700型	800型	900型	1000型
刀盘直径  diameter of the cutter (mm)	400	500	600	700	800	900	1000
刀片数量 num. of the blade	4	4	4	6	6	4-6	4-6
刀片长度 length of the blade (mm)	100	130	150	200	230	260	300
料口直径 feeding size  (mm)	150×150	200×200	250×250	300×300	350×350	400×400	450×450
主轴转速 roller speed (r/min)	2600	2600	2500	2600	2300	2000	2000
配用电机 motor power   (kw)	5.5-7.5	11	15	18.5-22	37	45	55
配用柴油机 马力 diesel engine power	15	20	30	45	50	55	75
产量 capacity (kg/h)	800-1000	1000-2000	2000-3000	3000-3500	3500-4000	4000-5000	5000-6000
