Brief introduction:

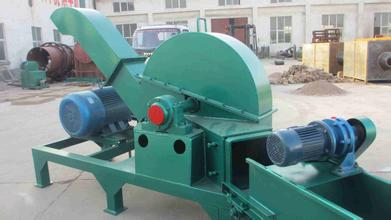

Disc wood chipper is dedicated device making superior wood chips, which apply to paper-making factory and wood chips production base. The series of disc wood chipper consists of machine frame, cutterhead, feeding hopper, housing, electronic system, etc. In order to meet the different requirements about the length of wood chips in the paper-making industry, fiber board industry, shaving board industry, the length of the wood chips can be adjusted within a certain range. We factory manufactured disc wood chipper is an ideal equipment in the production of high quality wood chips, also has the advantage of rational structure, simple operation, high yield, high wood chips qualified rate, low energy consumption, etc.
Application: Paper-making industry, shaving board industry, fiber board industry, man-made board industry, etc
Usage: Cutting the wood logs and undersized log into high quality industrial wood chips with equal length, flat incision, uniform thickness, also cutting the brushwood and plank, etc.
Capacity: 0.7-11 tons per hour

Model	BX1710	BX1112	BX1212	BX1216	BX1218	BX1220	BX1227
Knife disc diameter(mm)	950	1220	1220	1600	1800	2060	2650
Fly knife number(blades)	6	4	6	6	8	8	8
Feeding mouth size(mm)	207*190	400*275	300*300	545*383	420*420	584*560	584*600
Rotate speed of knife disc(rpm)	980	740	740	625	500	500	300
Maximum diameter of cutting wood log(mm)	100	200	160	300	360	500	2*280
Length of wood chips(mm)	12-35	20-35	20-35	20-35	20-35	20-35	20-35
Capacity(m3/h)	5.5-8	15-20	15-20	25-45	60-90	110	110-130
Main motor power(kw)	55	110	90	220-250	315	500	2*280
General weight(kg)	2665	4585	4256	8732	15500	29140	32450
Overall dimensions(mm)	2550*1660*1650	3000*1570*1614	3000*1400*1614	3756*1855*2093	2300*2000*2035	6410*3963*3025	5745*4785*2845
Discharging method	Upper discharging	Upper discharging	Upper discharging	Upper discharging	Lower discharging	Lower discharging	Lower discharging
